I recently picked up a Pico-ePaper-2.13 from Waveshare. This is a great, small e-ink display with a fast refresh time designed for interfacing with the Pi Pico. I want to make a few things with this, but I’m going to start out making a clock/weather widget display for your desk. I’m using a Pi Pico 2W for the extra ooomph, altho a Pi Pico 1W would work for this application.

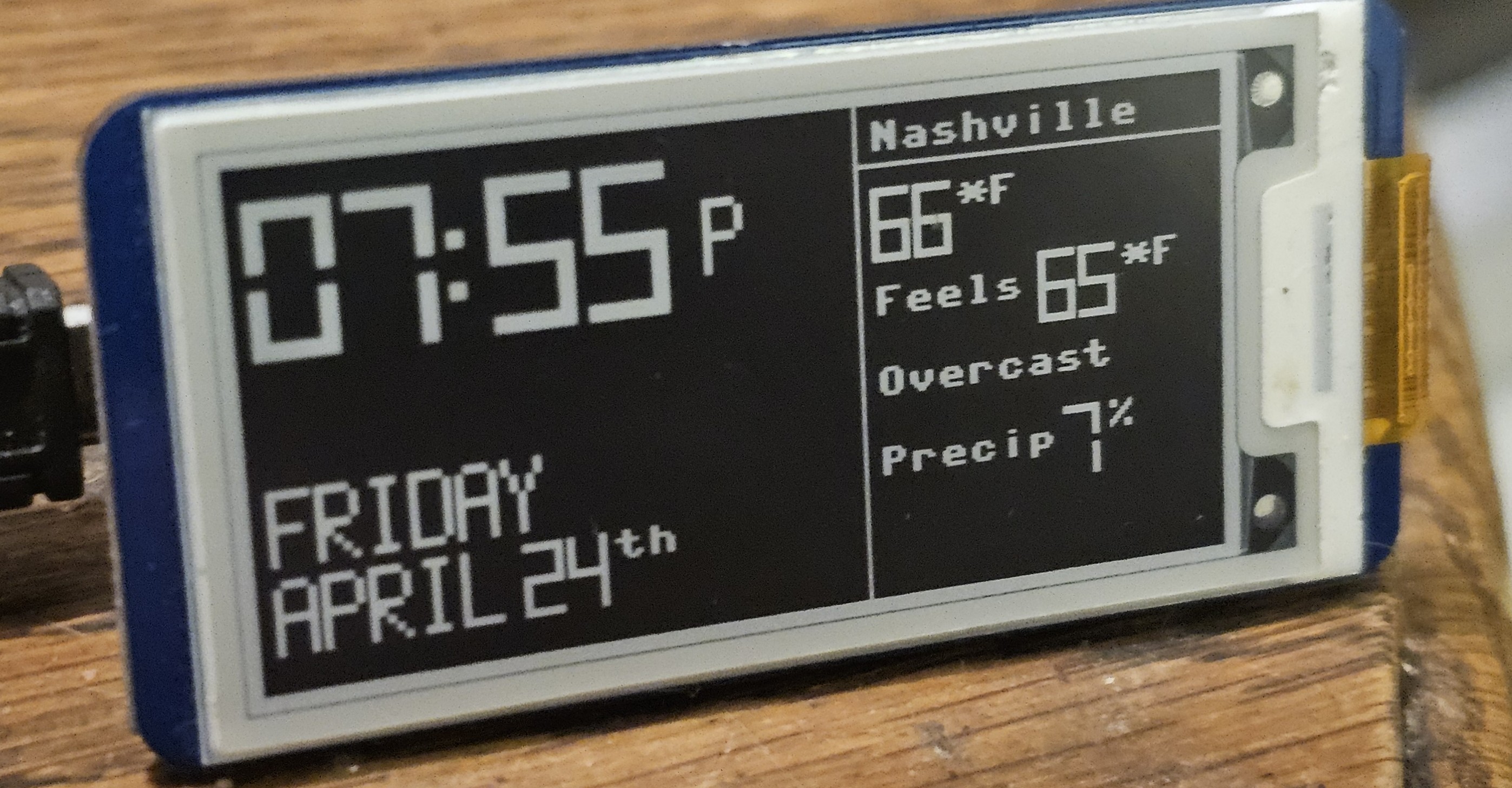

Pi Pico 2W ePaper 2.13 clock widget

Parts list:

Pi Pico 2W

Waveshare Pico ePaper 2.13

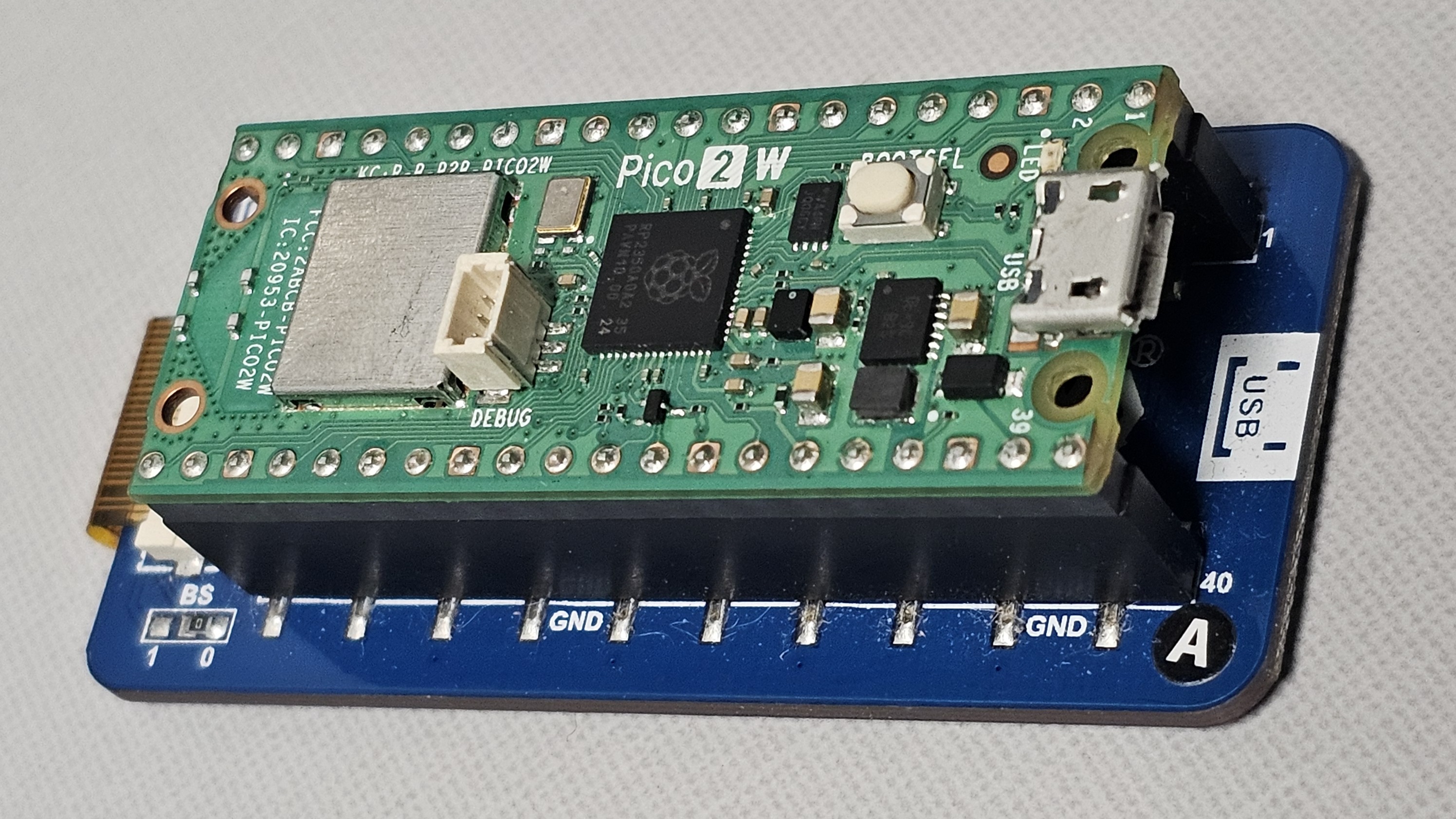

I’m not going to include wiring diagrams or schematics on this specific project, this ePaper device is ready for the Pi Pico out of the box. As long as the Pi Pico has the headers soldered on, you can just fit the ePaper to the microcontroller and it’s ready for code. Be sure to pay attention to the solder mask on the ePaper, it has a “USB” marking for orienting the Pi Pico correctly. I’m coding with MicroPython using the IDE Thonny.

USB Alignment mark

To start the project, I’m going to need a free API that I can pull weather data from for my location. I’ve done some testing with this display, there are text fonts that exist, but they are all small. These fonts will not be readable from a distance, so I will need to make a custom font for the larger letters. I’m also gonna use a time API to check up on the accuracy of the Pi Pico every hour. The free API for the weather data is from Open Meteo.

First thing to do code-wise is to make the bitmaps for the large size letters/numbers. I formatted the numerals so that it is easy to see the bits that are mapped to the screen:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

DIGIT_BITMAPS = {
    '0': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b00000,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '1': [0b00100,
          0b01100,
          0b00100,
          0b00100,
          0b00000,
          0b00100,
          0b00100,
          0b00100,
          0b01110],
    '2': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111],
    '3': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
    '4': [0b10001,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b00001],
    '5': [0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
    '6': [0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '7': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b00000,
          0b00001,
          0b00001,
          0b00001,
          0b00001],
    '8': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '9': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
}

If you look at the ones in the field of zeroes, you can see the numerals drawn out. I also made bitmaps for the letters of the alphabet, but didn’t do the fancy formatting. You can if you wanna tho.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

LETTER_BITMAPS = {
    'A': [0b01110,0b10001,0b10001,0b10001,0b11111,0b10001,0b10001,0b10001,0b10001],
    'B': [0b11110,0b10001,0b10001,0b10001,0b11110,0b10001,0b10001,0b10001,0b11110],
    'C': [0b01111,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b01111],
    'D': [0b11110,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b11110],
    'E': [0b11111,0b10000,0b10000,0b10000,0b11110,0b10000,0b10000,0b10000,0b11111],
    'F': [0b11111,0b10000,0b10000,0b10000,0b11110,0b10000,0b10000,0b10000,0b10000],
    'G': [0b01111,0b10000,0b10000,0b10000,0b10011,0b10001,0b10001,0b10001,0b01111],
    'H': [0b10001,0b10001,0b10001,0b10001,0b11111,0b10001,0b10001,0b10001,0b10001],
    'I': [0b01110,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b01110],
    'J': [0b00111,0b00010,0b00010,0b00010,0b00010,0b00010,0b10010,0b10010,0b01100],
    'K': [0b10001,0b10010,0b10100,0b11000,0b10000,0b11000,0b10100,0b10010,0b10001],
    'L': [0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b11111],
    'M': [0b10001,0b11011,0b10101,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001],
    'N': [0b10001,0b11001,0b10101,0b10011,0b10001,0b10001,0b10001,0b10001,0b10001],
    'O': [0b01110,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01110],
    'P': [0b11110,0b10001,0b10001,0b10001,0b11110,0b10000,0b10000,0b10000,0b10000],
    'Q': [0b01110,0b10001,0b10001,0b10001,0b10001,0b10101,0b10011,0b10001,0b01111],
    'R': [0b11110,0b10001,0b10001,0b10001,0b11110,0b11000,0b10100,0b10010,0b10001],
    'S': [0b01111,0b10000,0b10000,0b10000,0b01110,0b00001,0b00001,0b00001,0b11110],
    'T': [0b11111,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100],
    'U': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01110],
    'V': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01010,0b01010,0b00100],
    'W': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10101,0b10101,0b11011,0b10001],
    'X': [0b10001,0b10001,0b01010,0b01010,0b00100,0b01010,0b01010,0b10001,0b10001],
    'Y': [0b10001,0b10001,0b01010,0b01010,0b00100,0b00100,0b00100,0b00100,0b00100],
    'Z': [0b11111,0b00001,0b00010,0b00100,0b01000,0b01000,0b10000,0b10000,0b11111],
}

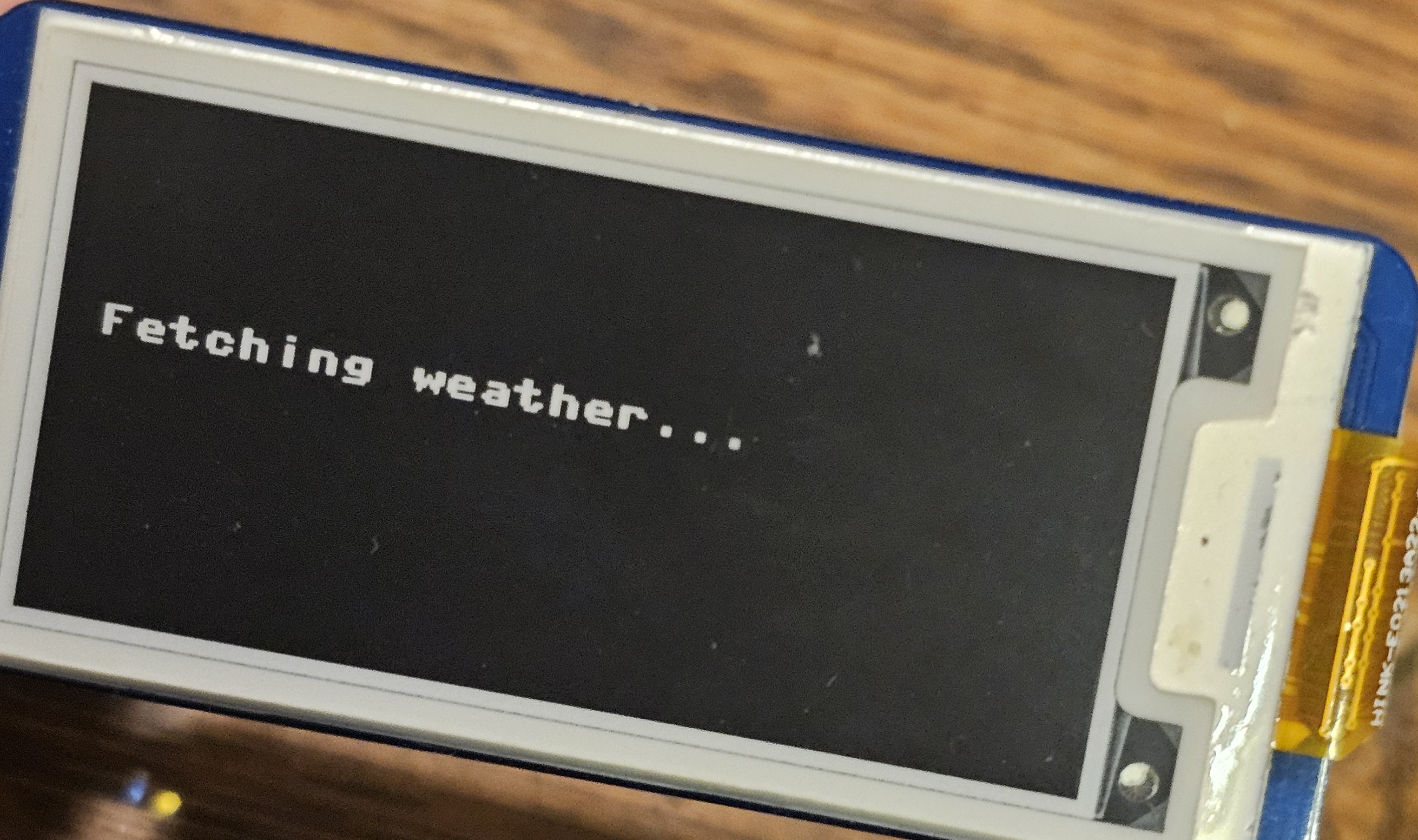

Getting Weather

The weather API from Open Meteo requires your lattitude and longitude, timezone, what specific info you want from them, and your preferred temperature format (C or F). It will return a “weather code”, which can be translated into the current weather conditions. This is the translation layer for the weather API output:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

WMO = {
    0:"Clear", 1:"Mostly Clear", 2:"Partly Cloudy", 3:"Overcast",
    45:"Foggy", 48:"Icy Fog",
    51:"Lt Drizzle", 53:"Drizzle", 55:"Hvy Drizzle",
    61:"Lt Rain", 63:"Rain", 65:"Hvy Rain",
    71:"Lt Snow", 73:"Snow", 75:"Hvy Snow", 77:"Sleet",
    80:"Showers", 81:"Showers", 82:"Hvy Showers",
    85:"Snow Showers", 86:"Hvy Snow Showers",
    95:"Thunderstorm", 96:"T-storm+Hail", 99:"Hvy T-storm",
}

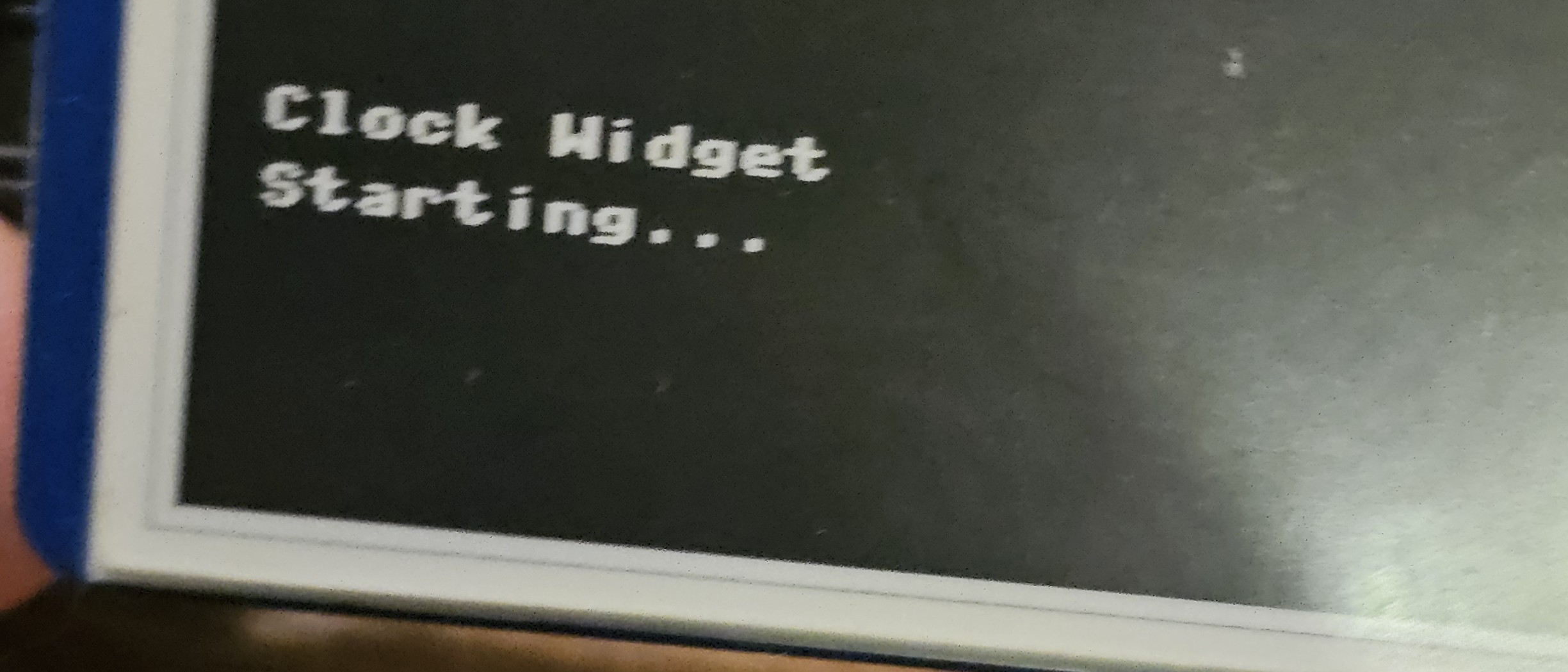

Clock Start

This should take care of the majority of the code, there will be a little bit more to tie it all together. The clock display will update every minute. We’re storing the time in the Pico, but checking every hour that we haven’t drifted off too badly. We are going to hit the weather API every 15 minutes to update the latest temp and forecast. The Open Meteo API has a limit of 10,000 requests per day, however I want to limit my usage even further to be kind to this free API provider. The full code is as follows:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664

"""
Clock Widget - Waveshare 2.13" E-ink Display (Landscape Mode)
Hardware: Raspberry Pi Pico 2W
Canvas:   250x128px landscape

Layout:
  Left  (~148px): Large segmented clock  +  day/date below
  Right (~100px): Current weather summary

The clock uses a hand-drawn 5x9 pixel digit font scaled 3x
so each digit is 15x27px — readable at arm's length.
Colon separators are 5px wide. AM/PM sit beside the time.

APIs:
  - Time:    worldtimeapi.org  (synced on boot, re-synced hourly)
  - Weather: Open-Meteo       (free, no key)

Location: Nashville, TN — change LAT/LON to your coords.
"""

from machine import Pin, SPI, RTC
import framebuf
import utime
import network
import time

# ── Config ─────────────────────────────────────────────────
WIFI_SSID     = "Your SSID"
WIFI_PASSWORD = "Your Password"

LATITUDE   = 36.1628
LONGITUDE  = -85.5016
TEMP_UNIT  = "fahrenheit"
TEMP_SUFFIX = "F"

PARTIAL_INTERVAL = 60    # seconds — redraw every minute for the clock
DARK_MODE = True         # True = black background, white text

# ── E-Paper Constants ───────────────────────────────────────
EPD_WIDTH  = 250
EPD_HEIGHT = 128
RST_PIN  = 12
DC_PIN   = 8
CS_PIN   = 9
BUSY_PIN = 13
FULL_UPDATE = 0
PART_UPDATE = 1

lut_full_update = [
    0x80,0x60,0x40,0x00,0x00,0x00,0x00,
    0x10,0x60,0x20,0x00,0x00,0x00,0x00,
    0x80,0x60,0x40,0x00,0x00,0x00,0x00,
    0x10,0x60,0x20,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x03,0x03,0x00,0x00,0x02,
    0x09,0x09,0x00,0x00,0x02,
    0x03,0x03,0x00,0x00,0x02,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x15,0x41,0xA8,0x32,0x30,0x0A,
]
lut_partial_update = [
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x80,0x00,0x00,0x00,0x00,0x00,0x00,
    0x40,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x0A,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,
    0x15,0x41,0xA8,0x32,0x30,0x0A,
]

# ── EPD Driver ──────────────────────────────────────────────
class EPD_2in13(framebuf.FrameBuffer):
    def __init__(self):
        self.reset_pin = Pin(RST_PIN, Pin.OUT)
        self.busy_pin  = Pin(BUSY_PIN, Pin.IN, Pin.PULL_UP)
        self.cs_pin    = Pin(CS_PIN, Pin.OUT)
        self.dc_pin    = Pin(DC_PIN, Pin.OUT)
        self.spi = SPI(1)
        self.spi.init(baudrate=4000_000)

        self.width    = EPD_WIDTH
        self.height   = EPD_HEIGHT
        self.fb_width = 256          # padded to multiple of 8
        self.buffer   = bytearray(self.fb_width * self.height // 8)
        super().__init__(self.buffer, self.fb_width, self.height, framebuf.MONO_HLSB)

        self.full_lut    = lut_full_update
        self.partial_lut = lut_partial_update
        self.full_update = FULL_UPDATE
        self.part_update = PART_UPDATE
        self.init(FULL_UPDATE)

    def _cmd(self, c):
        self.dc_pin.value(0); self.cs_pin.value(0)
        self.spi.write(bytearray([c])); self.cs_pin.value(1)

    def _dat(self, d):
        self.dc_pin.value(1); self.cs_pin.value(0)
        self.spi.write(bytearray([d]) if isinstance(d, int) else bytearray(d))
        self.cs_pin.value(1)

    def _wait(self):
        while self.busy_pin.value() == 1:
            utime.sleep_ms(10)

    def reset(self):
        self.reset_pin.value(1); utime.sleep_ms(50)
        self.reset_pin.value(0); utime.sleep_ms(2)
        self.reset_pin.value(1); utime.sleep_ms(50)

    def _on_full(self):
        self._cmd(0x22); self._dat(0xC7); self._cmd(0x20); self._wait()

    def _on_part(self):
        self._cmd(0x22); self._dat(0x0C); self._cmd(0x20); self._wait()

    def init(self, update):
        self.reset()
        if update == FULL_UPDATE:
            self._wait()
            self._cmd(0x12); self._wait()
            self._cmd(0x74); self._dat(0x54)
            self._cmd(0x7E); self._dat(0x3B)
            self._cmd(0x01)
            self._dat(0xF9); self._dat(0x00); self._dat(0x00)
            self._cmd(0x11); self._dat(0x03)
            self._cmd(0x44); self._dat(0x00); self._dat(0x0F)
            self._cmd(0x45)
            self._dat(0x00); self._dat(0x00); self._dat(0xF9); self._dat(0x00)
            self._cmd(0x3C); self._dat(0x03)
            self._cmd(0x2C); self._dat(0x55)
            self._cmd(0x03); self._dat(self.full_lut[70])
            self._cmd(0x04)
            self._dat(self.full_lut[71]); self._dat(self.full_lut[72]); self._dat(self.full_lut[73])
            self._cmd(0x3A); self._dat(self.full_lut[74])
            self._cmd(0x3B); self._dat(self.full_lut[75])
            self._cmd(0x32)
            for b in self.full_lut[:70]: self._dat(b)
            self._cmd(0x4E); self._dat(0x00)
            self._cmd(0x4F); self._dat(0x00); self._dat(0x00)
            self._wait()
        else:
            self._cmd(0x2C); self._dat(0x26); self._wait()
            self._cmd(0x32)
            for b in self.partial_lut[:70]: self._dat(b)
            self._cmd(0x37)
            for b in [0x00,0x00,0x00,0x00,0x40,0x00,0x00]: self._dat(b)
            self._cmd(0x22); self._dat(0xC0); self._cmd(0x20); self._wait()
            self._cmd(0x3C); self._dat(0x01)

    def _rotate(self):
        """Rotate 250x128 landscape framebuf 90° CW → 128x250 portrait panel buffer."""
        src_fw = self.fb_width   # 256 (padded row stride)
        src_h  = self.height     # 128
        src_w  = self.width      # 250 (real columns)
        bpr    = 16              # dest bytes per row (128px / 8)
        out    = bytearray(b'\xff' * (bpr * 250))
        for sy in range(src_h):
            for sx in range(src_w):
                idx = sy * src_fw + sx
                pixel = (self.buffer[idx >> 3] >> (7 - (idx & 7))) & 1
                dx = src_h - 1 - sy
                dy = sx
                di = dy * bpr + (dx >> 3)
                if pixel:
                    out[di] |=  (0x80 >> (dx & 7))
                else:
                    out[di] &= ~(0x80 >> (dx & 7))
        return out

    def display(self):
        buf = self._rotate()
        self._cmd(0x24); self._dat(buf); self._on_full()

    def display_base(self):
        buf = self._rotate()
        self._cmd(0x24); self._dat(buf)
        self._cmd(0x26); self._dat(buf)
        self._on_full()

    def display_partial(self):
        buf = self._rotate()
        self._cmd(0x24); self._dat(buf)
        self._cmd(0x26); self._dat(buf)
        self._on_part()

    def sleep(self):
        self._cmd(0x10); self._dat(0x03)
        utime.sleep_ms(2000)
        self.reset_pin.value(0)


# ── Large Digit Font ────────────────────────────────────────
# Each digit is a 5-wide × 9-tall bitmap (list of 9 rows, each row is
# a 5-bit integer, MSB = leftmost pixel).
# Scaled 3× → 15×27px per digit. Colon is 3×27.
#
# Segment map (viewed as a 5×9 grid):
#   Row 0:     top bar
#   Rows 1-3:  upper verticals
#   Row 4:     middle bar
#   Rows 5-7:  lower verticals
#   Row 8:     bottom bar
#
DIGIT_BITMAPS = {
    '0': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b00000,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '1': [0b00100,
          0b01100,
          0b00100,
          0b00100,
          0b00000,
          0b00100,
          0b00100,
          0b00100,
          0b01110],
    '2': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111],
    '3': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
    '4': [0b10001,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b00001],
    '5': [0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
    '6': [0b11111,
          0b10000,
          0b10000,
          0b10000,
          0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '7': [0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b00000,
          0b00001,
          0b00001,
          0b00001,
          0b00001],
    '8': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111],
    '9': [0b11111,
          0b10001,
          0b10001,
          0b10001,
          0b11111,
          0b00001,
          0b00001,
          0b00001,
          0b11111],
}

DIGIT_W = 5   # bitmap columns
DIGIT_H = 9   # bitmap rows
SCALE   = 4   # pixel scale factor  (was 3 → now 4)
CELL_W  = DIGIT_W * SCALE   # 20px per digit
CELL_H  = DIGIT_H * SCALE   # 36px per digit

# ── A-Z bitmap font (5×9, same grid as digits) ──────────────
# Used for spelled-out day/month names at 2× scale (10×18px/char)
LETTER_BITMAPS = {
    'A': [0b01110,0b10001,0b10001,0b10001,0b11111,0b10001,0b10001,0b10001,0b10001],
    'B': [0b11110,0b10001,0b10001,0b10001,0b11110,0b10001,0b10001,0b10001,0b11110],
    'C': [0b01111,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b01111],
    'D': [0b11110,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b11110],
    'E': [0b11111,0b10000,0b10000,0b10000,0b11110,0b10000,0b10000,0b10000,0b11111],
    'F': [0b11111,0b10000,0b10000,0b10000,0b11110,0b10000,0b10000,0b10000,0b10000],
    'G': [0b01111,0b10000,0b10000,0b10000,0b10011,0b10001,0b10001,0b10001,0b01111],
    'H': [0b10001,0b10001,0b10001,0b10001,0b11111,0b10001,0b10001,0b10001,0b10001],
    'I': [0b01110,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b01110],
    'J': [0b00111,0b00010,0b00010,0b00010,0b00010,0b00010,0b10010,0b10010,0b01100],
    'K': [0b10001,0b10010,0b10100,0b11000,0b10000,0b11000,0b10100,0b10010,0b10001],
    'L': [0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b10000,0b11111],
    'M': [0b10001,0b11011,0b10101,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001],
    'N': [0b10001,0b11001,0b10101,0b10011,0b10001,0b10001,0b10001,0b10001,0b10001],
    'O': [0b01110,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01110],
    'P': [0b11110,0b10001,0b10001,0b10001,0b11110,0b10000,0b10000,0b10000,0b10000],
    'Q': [0b01110,0b10001,0b10001,0b10001,0b10001,0b10101,0b10011,0b10001,0b01111],
    'R': [0b11110,0b10001,0b10001,0b10001,0b11110,0b11000,0b10100,0b10010,0b10001],
    'S': [0b01111,0b10000,0b10000,0b10000,0b01110,0b00001,0b00001,0b00001,0b11110],
    'T': [0b11111,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100,0b00100],
    'U': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01110],
    'V': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10001,0b01010,0b01010,0b00100],
    'W': [0b10001,0b10001,0b10001,0b10001,0b10001,0b10101,0b10101,0b11011,0b10001],
    'X': [0b10001,0b10001,0b01010,0b01010,0b00100,0b01010,0b01010,0b10001,0b10001],
    'Y': [0b10001,0b10001,0b01010,0b01010,0b00100,0b00100,0b00100,0b00100,0b00100],
    'Z': [0b11111,0b00001,0b00010,0b00100,0b01000,0b01000,0b10000,0b10000,0b11111],
}

def ordinal_suffix(n):
    """Return 'st', 'nd', 'rd', or 'th' for integer n."""
    if 11 <= (n % 100) <= 13:
        return 'th'
    return {1:'st', 2:'nd', 3:'rd'}.get(n % 10, 'th')

def draw_digit(epd, ch, x, y, color=0x00):
    """Draw a single large digit at (x, y) top-left."""
    bmap = DIGIT_BITMAPS.get(ch)
    if bmap is None:
        return
    for row in range(DIGIT_H):
        bits = bmap[row]
        for col in range(DIGIT_W):
            if bits & (0x10 >> col):
                for dy in range(SCALE):
                    for dx in range(SCALE):
                        epd.pixel(x + col*SCALE + dx, y + row*SCALE + dy, color)

def draw_char(epd, ch, x, y, scale=2, color=0x00):
    """
    Draw a single character (digit or letter) from the bitmap fonts
    at an arbitrary scale. scale=2 → 10×18px, scale=4 → 20×36px.
    Returns the width consumed (DIGIT_W * scale).
    """
    bmap = DIGIT_BITMAPS.get(ch) or LETTER_BITMAPS.get(ch.upper())
    if bmap is None:
        return DIGIT_W * scale   # skip unknown chars (treat as space)
    for row in range(DIGIT_H):
        bits = bmap[row]
        for col in range(DIGIT_W):
            if bits & (0x10 >> col):
                for dy in range(scale):
                    for dx in range(scale):
                        epd.pixel(x + col*scale + dx, y + row*scale + dy, color)
    return DIGIT_W * scale

def draw_string(epd, text, x, y, scale=2, gap=1, color=0x00):
    """
    Draw a string of letters/digits using bitmap font at given scale.
    Returns ending x position.
    """
    cx = x
    for ch in text:
        if ch == ' ':
            cx += (DIGIT_W * scale) // 2 + gap
        else:
            cx += draw_char(epd, ch, cx, y, scale, color) + gap
    return cx

def draw_colon(epd, x, y, color=0x00):
    """Draw a colon — two 3×3 dots, vertically centered in CELL_H."""
    dot_y1 = y + CELL_H // 3 - 1
    dot_y2 = y + 2 * CELL_H // 3 - 1
    for dy in range(4):
        for dx in range(4):
            epd.pixel(x + dx, dot_y1 + dy, color)
            epd.pixel(x + dx, dot_y2 + dy, color)

def draw_clock(epd, h, m, x, y, color=0x00):
    """Draw HH:MM in large digits starting at (x, y)."""
    time_str = f"{h:02d}{m:02d}"
    COLON_W = 10
    GAP     = 3

    cx = x
    for ch in time_str[:2]:
        draw_digit(epd, ch, cx, y, color=color)
        cx += CELL_W + GAP
    draw_colon(epd, cx, y, color=color)
    cx += COLON_W
    for ch in time_str[2:]:
        draw_digit(epd, ch, cx, y, color=color)
        cx += CELL_W + GAP
    return cx


# ── WiFi ────────────────────────────────────────────────────
def connect_wifi():
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    if wlan.isconnected():
        return True
    print("Connecting WiFi...")
    wlan.connect(WIFI_SSID, WIFI_PASSWORD)
    for _ in range(20):
        if wlan.isconnected():
            print("WiFi:", wlan.ifconfig()[0])
            return True
        time.sleep(1)
    return False


# ── Time sync ───────────────────────────────────────────────
# Uses MicroPython's built-in ntptime (much more reliable than worldtimeapi).
# NTP always returns UTC, so we apply a manual offset.
UTC_OFFSET_HOURS = -6   # confirmed via NTP debug: UTC 21:35 = local 15:35

def sync_time():
    try:
        import ntptime
        ntptime.host = "pool.ntp.org"
        ntptime.settime()   # sets RTC to UTC
        utc = utime.localtime()
        print(f"NTP sync OK — UTC is {utc[3]:02d}:{utc[4]:02d}:{utc[5]:02d}")
        return True
    except Exception as e:
        print("Time sync error:", e)
        return False

def local_time():
    """Return localtime tuple adjusted for UTC_OFFSET_HOURS."""
    return utime.localtime(utime.time() + UTC_OFFSET_HOURS * 3600)


# ── Weather ─────────────────────────────────────────────────
WMO = {
    0:"Clear", 1:"Mostly Clear", 2:"Partly Cloudy", 3:"Overcast",
    45:"Foggy", 48:"Icy Fog",
    51:"Lt Drizzle", 53:"Drizzle", 55:"Hvy Drizzle",
    61:"Lt Rain", 63:"Rain", 65:"Hvy Rain",
    71:"Lt Snow", 73:"Snow", 75:"Hvy Snow", 77:"Sleet",
    80:"Showers", 81:"Showers", 82:"Hvy Showers",
    85:"Snow Showers", 86:"Hvy Snow Showers",
    95:"Thunderstorm", 96:"T-storm+Hail", 99:"Hvy T-storm",
}

def get_weather():
    try:
        import urequests
        url = (
            f"https://api.open-meteo.com/v1/forecast"
            f"?latitude={LATITUDE}&longitude={LONGITUDE}"
            f"&current=temperature_2m,apparent_temperature,weather_code,precipitation_probability"
            f"&temperature_unit={TEMP_UNIT}"
            f"&forecast_days=1"
            f"&timezone=America%2FChicago"
        )
        r = urequests.get(url, timeout=20)
        if r.status_code != 200:
            r.close(); return None
        d = r.json(); r.close()
        cur = d['current']
        return {
            'temp':       round(float(cur['temperature_2m'])),
            'feels_like': round(float(cur['apparent_temperature'])),
            'condition':  WMO.get(cur['weather_code'], "Unknown"),
            'precip':     cur.get('precipitation_probability', 0),
        }
    except Exception as e:
        print("Weather error:", e); return None


# ── Helpers ──────────────────────────────────────────────────
DAYS   = ["Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"]
MONTHS = ["January","February","March","April","May","June",
          "July","August","September","October","November","December"]

def bold(epd, text, x, y, color=None):
    c = FG if color is None else color
    epd.text(text, x,   y, c)
    epd.text(text, x+1, y, c)

def splash(epd, line1, line2=""):
    epd.fill(BG)
    epd.text(line1, 10, 55, FG)
    if line2: epd.text(line2, 10, 68, FG)
    epd.display()


# ── Screen layout ────────────────────────────────────────────
#
#  x=0                 x=152        x=250
#  ┌────────────────────┬────────────┐  y=0
#  │                    │ Nashville  │
#  │   10:42  •         │ 52*F       │
#  │                    │ Feels 48*F │
#  │   Thursday Feb 19  │ Pt Cloudy  │
#  │                    │ Precip 20% │
#  └────────────────────┴────────────┘  y=127
#
PANEL_X   = 152
DIVIDER_X = 151

# Derive foreground/background from DARK_MODE flag
BG = 0x00 if DARK_MODE else 0xFF   # fill color
FG = 0xFF if DARK_MODE else 0x00   # text/line color

def draw_screen(epd, weather):
    epd.fill(BG)

    t    = local_time()
    hour = t[3]
    mins = t[4]
    h12  = hour % 12 or 12
    ampm = "AM" if hour < 12 else "PM"

    # ── Large clock (4× scale, 20×36px digits) ──────────────
    clock_x = 4
    clock_y = 14
    draw_clock(epd, h12, mins, clock_x, clock_y, color=FG)

    # A or P — single letter at 2× scale, sits right of digit block
    ampm_letter = "A" if hour < 12 else "P"
    draw_char(epd, ampm_letter, clock_x + 108, clock_y + 10, scale=2, color=FG)

    # ── Day + Date (2× scale = 10×18px per char) ────────────
    day_name   = DAYS[t[6]]
    month_name = MONTHS[t[1] - 1]
    day_num    = t[2]
    suffix     = ordinal_suffix(day_num)

    # Pulled up slightly from the bottom edge
    date_y2 = 101
    date_y1 = 80

    draw_string(epd, day_name,  clock_x, date_y1, scale=2, gap=1, color=FG)
    end_x = draw_string(epd, month_name, clock_x, date_y2, scale=2, gap=1, color=FG)
    end_x += 4
    end_x = draw_string(epd, str(day_num), end_x, date_y2, scale=2, gap=1, color=FG)
    epd.text(suffix, end_x + 1, date_y2, FG)

    # ── Vertical divider ────────────────────────────────────
    epd.vline(DIVIDER_X, 0, 128, FG)

    # ── Weather panel ───────────────────────────────────────
    wx = PANEL_X + 3

    if weather:
        epd.text("Nashville", wx, 10, FG)
        epd.hline(DIVIDER_X, 20, 250 - DIVIDER_X, FG)

        # Temperature
        temp_str = str(weather['temp'])
        end = draw_string(epd, temp_str, wx, 26, scale=2, gap=1, color=FG)
        epd.text(f"*{TEMP_SUFFIX}", end + 1, 26, FG)

        # Feels like
        epd.text("Feels", wx, 50, FG)
        feel_str = str(weather['feels_like'])
        end = draw_string(epd, feel_str, wx + 44, 46, scale=2, gap=1, color=FG)
        epd.text(f"*{TEMP_SUFFIX}", end + 1, 46, FG)

        # Condition
        cond = weather['condition'][:11]
        epd.text(cond, wx, 70, FG)

        # Precip
        epd.text("Precip", wx, 90, FG)
        prec_str = str(weather['precip'])
        end = draw_string(epd, prec_str, wx + 50, 86, scale=2, gap=1, color=FG)
        epd.text("%", end + 1, 86, FG)

    else:
        epd.text("Weather", wx, 40, FG)
        epd.text("N/A", wx, 54, FG)


# ── Main ─────────────────────────────────────────────────────
def main():
    print("Clock Widget starting...")
    epd = EPD_2in13()

    splash(epd, "Clock Widget", "Starting...")
    time.sleep(1)

    splash(epd, "Connecting WiFi...")
    if not connect_wifi():
        splash(epd, "WiFi Failed!", "Check credentials")
        return

    splash(epd, "Syncing time...")
    if not sync_time():
        time.sleep(2)
        sync_time()

    splash(epd, "Fetching weather...")
    weather = get_weather()

    # First full render
    draw_screen(epd, weather)
    epd.display()
    print("Initial display done")

    update_count   = 0
    last_time_sync = time.time()
    last_weather   = time.time()

    while True:
        try:
            time.sleep(PARTIAL_INTERVAL)
            update_count += 1

            # Re-sync time every hour
            if time.time() - last_time_sync > 3600:
                sync_time()
                last_time_sync = time.time()

            # Re-fetch weather every 15 minutes
            if time.time() - last_weather > 900:
                w = get_weather()
                if w:
                    weather = w
                last_weather = time.time()

            draw_screen(epd, weather)
            epd.display()
            print(f"Update #{update_count} done")

        except KeyboardInterrupt:
            print("\nShutting down...")
            epd.init(FULL_UPDATE)
            epd.sleep()
            break
        except Exception as e:
            print(f"Loop error: {e}")
            time.sleep(30)


if __name__ == '__main__':
    main()

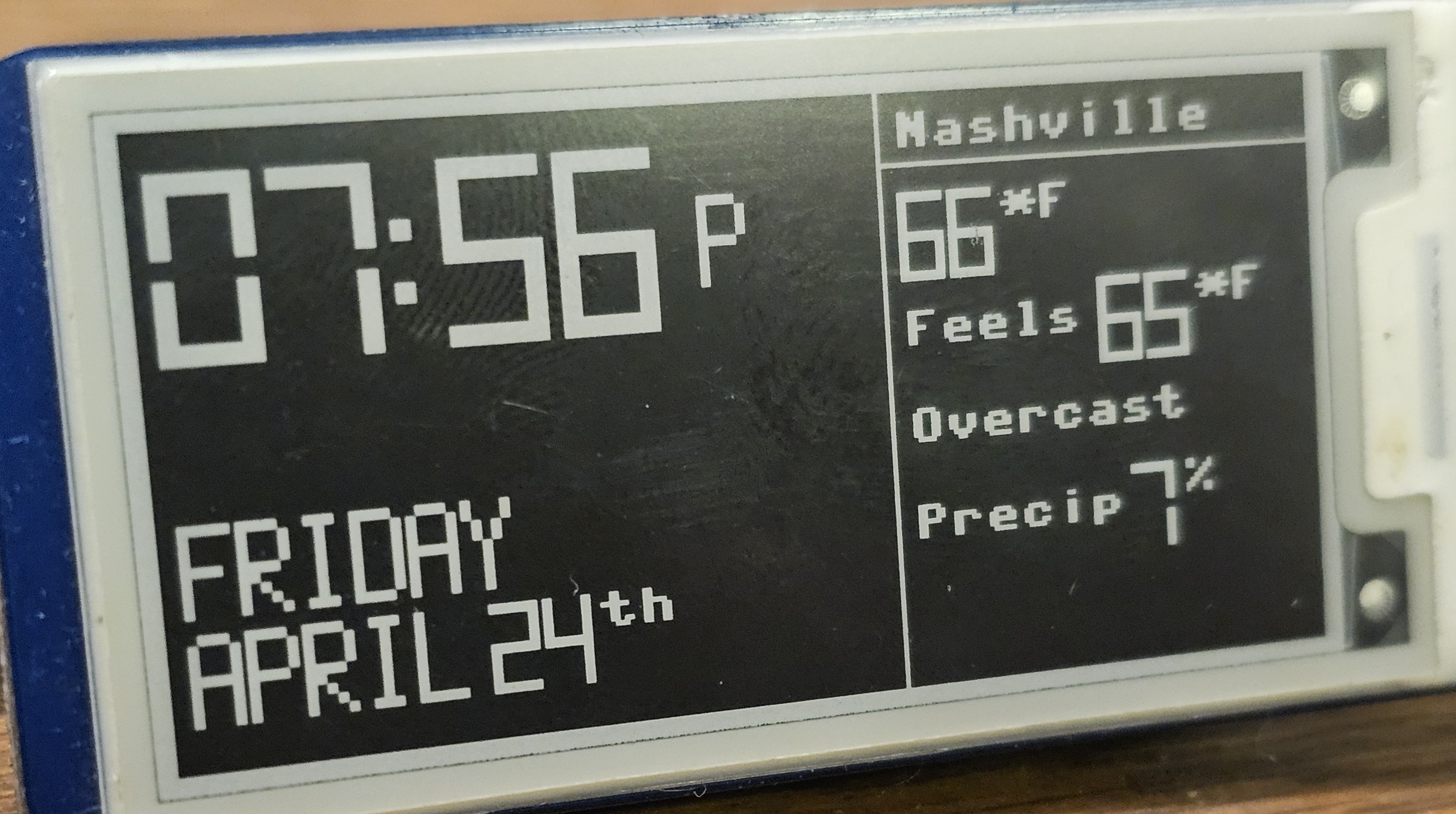

The only things needed to adapt this code to your usage is to add your SSID and password at the top of the file, your latitude and longitude, and your city name. Once these are in place, you should have a working desktop clock/weather widget device. This is a great first project to kick off the blog, and I will revisit it in the future to add features. The latest version of this code is also available on GitHub as well. Check back in for more embedded dev projects, we’re just getting started!!

End
